Diversionary Light Payload

Empower your tactical edge

High-performance LED and laser technologies for superior light diversion and target control

Learn More

Empower your tactical edge

High-performance LED and laser technologies for superior light diversion and target control

Learn More

Enhance tactical effectiveness with advanced technologies

Our Light Diversionary Payload combines multiple powerful light sources in a ruggedized, aviation-grade aluminum shell to provide a tactical advantage from a safe distance. It illuminates dark areas, tracks subjects in complete darkness and can disorient targets.

Multi-functional

Illuminate dark areas, track subjects, collect evidence and designate targets using a range of LED and LASER light sources

Universal payload

The Sky-Hero by Axon Light Diversionary Payload can be used interchangeably on all Sky-Hero by Axon small uncrewed ground vehicle and air vehicle (sUGV) models, including Loki Mkll, Sigyn Mkl and Narfi Mkl

Plug-and-play

Quickly and simply install without tools

Light design

Easily hook camera payload onto compatible Sky-Hero by Axon systems

Diversionary Light Payload System

Detailed product information for the Diversionary Light Payload System.

Download Product Guide

Tech Specs

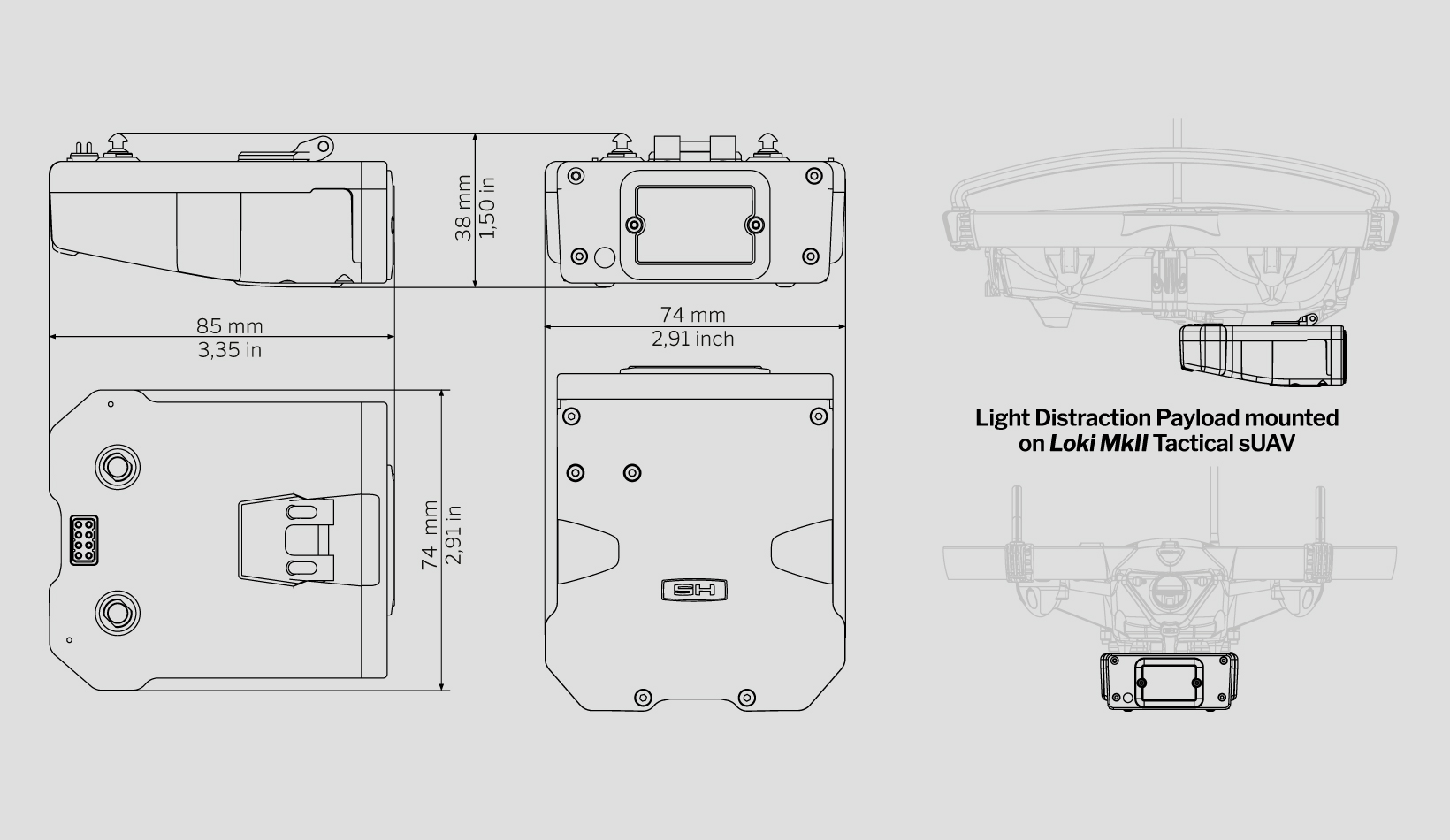

Blueprint

Specifications

White LED for spotlight & strobe modes

Luminous Flux – 1880 lm, Electrical Power – 15,1 W

LASER for designation mode

Color – Green (505-530 nm), Spot Size – < 4,5 mm | 1,77 inch, Dimension – O 10×18 mm, Output Power – < 4mW

RGB LEDs for signaling mode

Red Luminous Flux – max 280 lm, Green Luminous Flux – max 560 lm, Blue Luminous Flux – max 250 lm, White Luminous Flux – max 710 lm,

Basic equipment

6-axis IMU, Barometer, Sonar, Optical Flow, EO/IR Camera, HD Mic, 4x IR LEDs

Operation

Our light distraction payload opens new possibilities to unmanned vehicle operators in a wide range of applications. It not only brings visible light to dark areas, it can temporarily blind and confuse a suspect, help to chase him in total darkness, save time helping collect evidences that would be difficult to see inside dark places. But also, design objects or peaple using the green laser pointer and communicate with your team or a K9 through pre-set RGB light patterns.
Mount it on our Loki MkII or Sigyn Mk1 to reach remote risky environments and help your team solving complex missions
